The final quotation confirms the selected model, attachments, specifications and delivery terms.
UNDERSTAND THE SETUP
Match the seed. Plan the work.

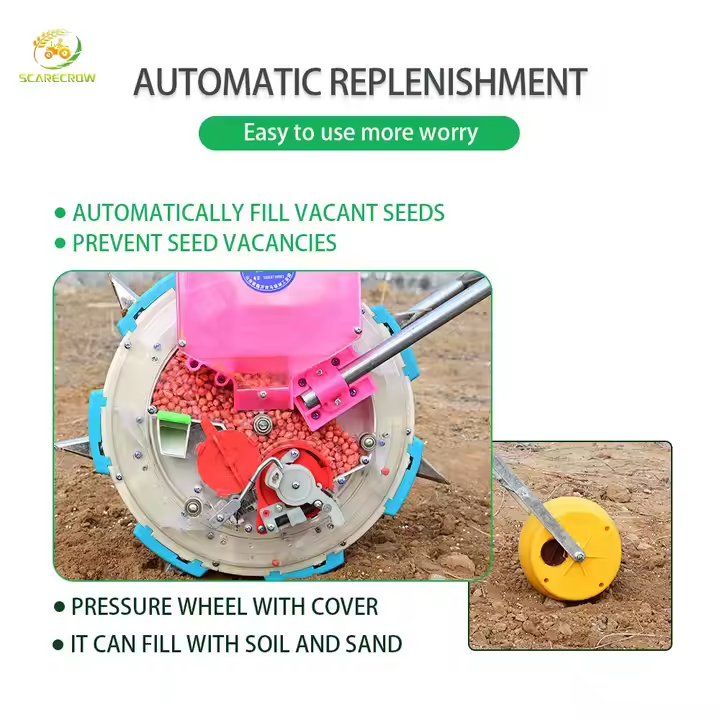

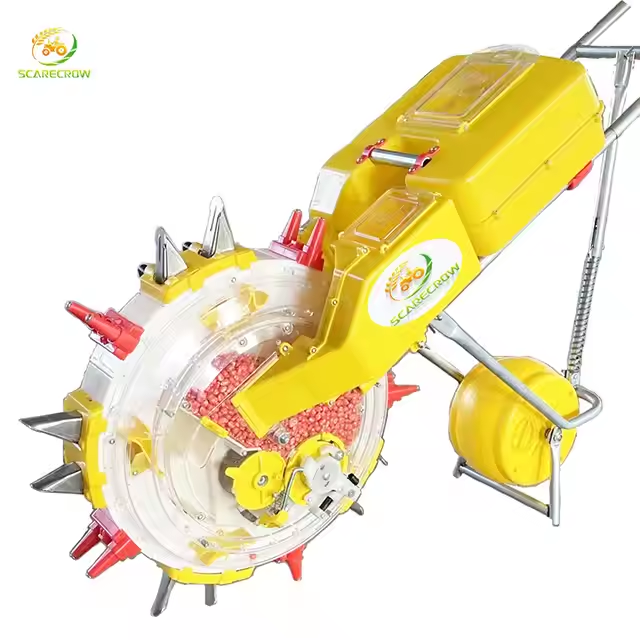

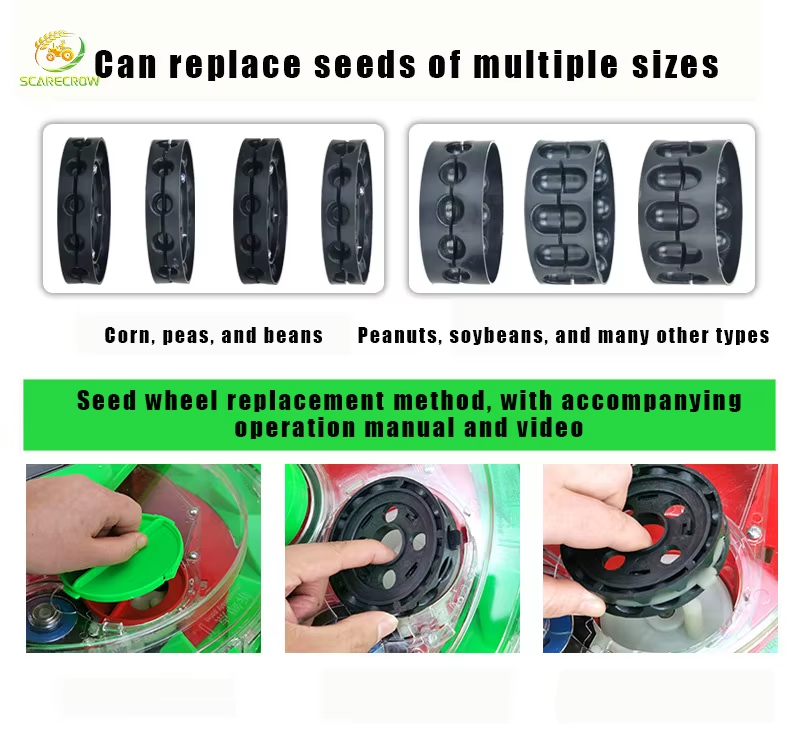

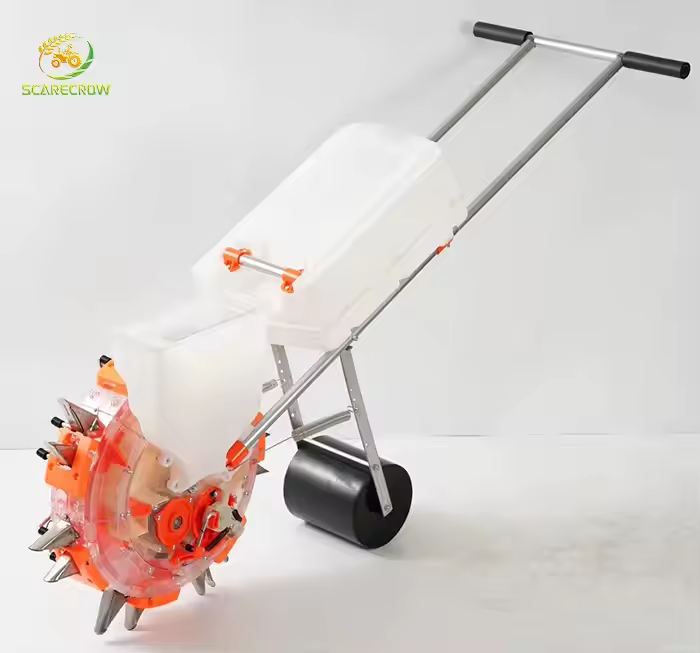

The SK-SA01 uses a wheel-operated planting mechanism for placing seeds as you move along the row. Replaceable seed wheels allow the planting setup to be matched to suitable seeds.
Choose the outlet configuration around the required spacing. Share the crop, seed dimensions and field conditions before ordering so the setup can be checked for your application.
TECHNICAL OVERVIEW
SK-SA01 specifications
Model
SK-SA01
Material
ABS + PC + stainless steel
Seed nozzle
Stainless steel
Sowing wheel
Replaceable
Outlet options
4, 5, 6, 7, 8, 9, 10 or 12
In-row spacing
14–40 cm
Mouth length options
6.5 / 8.5 cm
Net / gross weight
9.5 / 11 kg
Packing dimensions
51 × 23 × 58.5 cm
Specifications are configuration dependent. Please confirm the selected model and attachments with your quotation.
Match the wheel to the crop variety, measured seed size and required in-row spacing. Ask for a seed-fit check and confirm the outlet configuration before ordering.
Does the 14–40 cm range describe row spacing?
It describes the listed in-row spacing configurations: the distance between planting positions along a row. The distance between separate rows is a different planting-layout choice.
How do I request operating information and spare parts?
Send the model and a photograph of the equipment or part to our support team. For existing machines, include the engine label and the part location so the appropriate information can be checked.
YOUR APPLICATION, YOUR CONFIGURATION
Build the right setup.
Tell us about your crop, field and destination. The product is already selected below.
